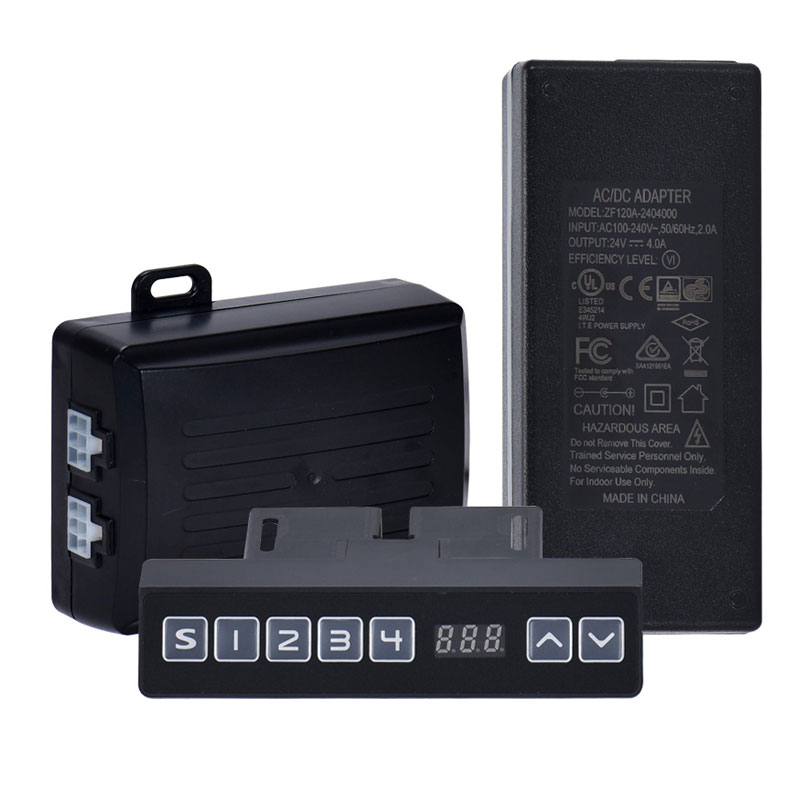

IPS-Hall-C5 1V2 120W AC100-240V To DC24V Hall Controller With Remote Control

Technical Parameters

Model IPS-C5 For Motor Qty 2PCS
Input Voltage AC 100~240V Working Temperature 0°C~ +40°C
Output Voltage DC 29V~32V Working Humidity 20%-90%
Power 100-180W Storage Temperature -20°C~ +90°C
Receiving Frequency 433MHz Receiving Method Radio Frequency
Controller Type Hall 6-Wire Control Key Mode Press Continuous

Dimensions

Controller Wiring Instructions

Error Code

Error code ‘rst’.
Please press the ‘V’ key, and it cannot be released. The motor drops to the bottom and rebounds again. The screen will display ‘0', release the V key.
Reset successfully

IPS-Hall-C5 1V2 120W AC100-240V To DC24V Hall Controller With Remote Control
Quantity:
