12V Linear Motion Actuator 6000N

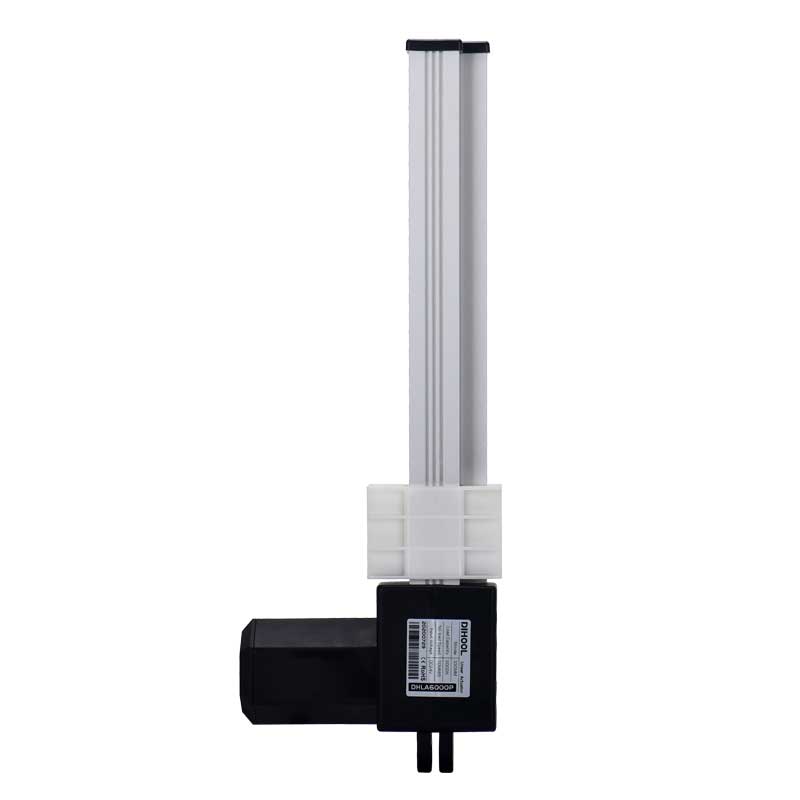

SRLA6000P Electric Linear Actuator

PDF

3D-FILM LIST:

DHLA6000P

E-MAIL

Product features

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：6000N/600kg

Maximum Speed：28mm/s

Maximum Stroke：1000mm

Limit Switches：Built-in

Protection Level：IP43

Operating Frequency：10%，2min.on/18min.off

Operating Temperature： -10℃~+55℃

Manual function: not support

Introduction

The SRLA6000P electric putter is an electric drive device that converts the rotation motion of the motor into the linear reciprocating motion of the putter. It can be used as an executing machine in various simple or complex process flow to realize remote control, centralized control or automatic control. It is mainly used in the motor drive unit of household appliances, kitchenware, medical equipment, automobile and other industries.

Technical Parameters

Voltage	DC12~19V / DC24~32V
No-load Speed (MM/S)	5	6	9	12.5	28
Load Pull Capacity (N)	6000	4000	3000	2000	1000
Load Push Capacity (N)	6000	4000	3000	2000	1000
Self-locking Capacity (N)	4000	2000	2000	1000	500
Stroke Length	30mm-1000mm
Motor Power	100W
Operating Temperature	-10℃~+55℃
Operating Frequency	10% max 2min. continuous use
Color	Black and off-white
Limit Switches	Built-in
Protection class	IP43
Material	Aluminum
Noise	30dB
Lead Screw Type	Turbine screw
Mechanical Life	More than 100,00 times

Outline Dimension Drawing
