Product Description
SRLT1-C3 lifting table silent lifting does not disturb others, lifting does not jam.Strong bearing capacity, stable and firm, slow stop slow start, use more secure.Simple and beautiful appearance, suitable for the majority of people to use.
Technical Parameters
| Model |
SRLT1-C3 |
| Voltage |
AC100~240V to DC24V |
| Table Board Size |
W1000×D1000mm (Maximum) |
| Height Adjustable Range |
610~1260MM |
| Section |
3 |
| Load Capacity |
800N | 80kg |
| No-load Speed |
25MM/S |
| Color |
RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature |
0°C~+40°C |
| IP Grade |
IP54 |
| Operating Frequency |
10% max 2min.continuous use |
| Limit Switches |
None |
| Panels |
None |
| Controller |
Hall Controller | With APP Hall Controller |
| Customized |
Table Leg | Hand Control | Color |
| Packaging |
L1215mm *W635mm *H140mm |

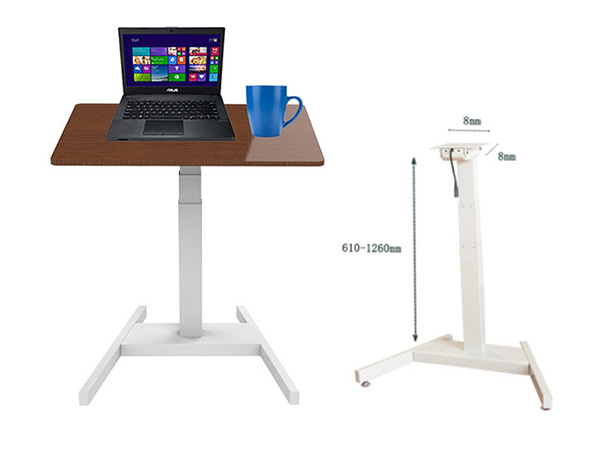

Outline Dimension Drawing
