Product features
Lead Screw Type：Trapezoidal thread
Input voltage：DC 12V/24V
Maximum load：150N/15kg
Maximum Speed：15mm/s
Maximum Stroke：400mm
Limit Switches：Built-in
Protection Level：IP65
Operating Frequency：10%，2min.on/18min.off
Operating Temperature： 0°C~+60°C
Manual function: not support
Introduction
SRLA45 series straight rod electric linear actuators has four pipe diameters such as 20MM/30MM/33MM/45MM, and the waterproof grade can reach IP65. Different pipe diameters has different load capacities which use different motors. 20MM The maximum load of pipe diameter is 150N, the maximum load of 30MM pipe diameter is 300N, the maximum load of 33MM pipe diameter is 500N, and the maximum load of 45MM pipe diameter is 3500N. This straight rod electric actuator can support 12V 24V voltage and can be customized in various specifications and stroke.
Technical Parameters
| Operating Temperature |
-10°C~+60°C |
Operating Frequency |
10% max 2min.continuous use |
| Limit Switches |
Built-in |
Inner Tube |
Aluminum Tube |
| IP Grade |
IP65 |
Lead Screw Type |
Type T |
| Material |
Aluminum |
Noise |
＜35dB |
| Mechanical Life |
More than 50,000 times |
|
|
| SRLA45-20 |
| Voltage |
DC24~32V |
DC12~19V |
| Load Push Capacity(N) |
150 |
100 |
40 |
150 |
100 |
40 |
| No-load Speed (MM/S) |
4 |
10 |
15 |
4 |
10 |
15 |
| Load Speed (MM/S) |
3 |
6 |
10 |
3 |
6 |
10 |
| No-load Current (A) |
0.06 |
0.05 |
0.05 |
0.12 |
0.1 |
0.1 |
| Load Current (A) |
0.25 |
0.18 |
0.2 |
0.5 |
0.36 |
0.4 |
| Stroke Length (mm) |
5mm-400mm |
| SRLA45-30 |
| Voltage |
DC24~32V |
DC12~19V |
| Load Push Capacity(N) |
300 |
200 |
120 |
70 |
200 |
120 |
70 |
| No-load Speed (MM/S) |
4 |
6 |
12 |
20 |
6 |
12 |
20 |
| Load Speed (MM/S) |
3 |
4 |
8 |
15 |
4 |
8 |
15 |
| No-load Current (A) |
0.12 |
0.1 |
0.1 |
0.1 |
0.2 |
0.2 |
0.2 |
| Load Current (A) |
0.4 |
0.35 |
0.4 |
0.35 |
0.5 |
0.5 |
0.5 |
| Stroke Length (mm) |
10mm-600mm |
| SRLA45-33 |
| Voltage |
DC24~32V |
DC12~19V |
| Load Push Capacity(N) |
500 |
400 |
300 |
200 |
500 |
400 |
300 |
200 |
| No-load Speed (MM/S) |
4 |
8 |
12 |
25 |
4 |
8 |
12 |
25 |
| Load Speed (MM/S) |
3 |
6 |
9 |
20 |
3 |
6 |
9 |
20 |
| No-load Current (A) |
0.15 |
0.15 |
0.17 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
| Load Current (A) |
0.4 |
0.5 |
0.6 |
0.7 |
0.6 |
0.55 |
0.65 |
0.7 |
| Stroke Length (mm) |
30mm-600mm |
| SRLA45-45 |
| Voltage |
DC24~32V |
DC12~19V |
| Load Push Capacity(N) |
3500 |
2000 |
1500 |
1000 |
3000 |
1500 |
1200 |
800 |
| No-load Speed (MM/S) |
3 |
5 |
7.5 |
10 |
2 |
4 |
5 |
8 |
| Load Speed (MM/S) |
1.7 |
3.5 |
4.5 |
6 |
1.5 |
3.5 |
4.5 |
6 |
| No-load Current (A) |
0.2 |
0.4 |
0.35 |
0.35 |
0.4 |
0.66 |
0.6 |
0.6 |
| Load Current (A) |
2.5 |
2.3 |
2 |
2 |
4 |
3.5 |
3 |
3 |
| Stroke Length (mm) |
50mm-800mm |

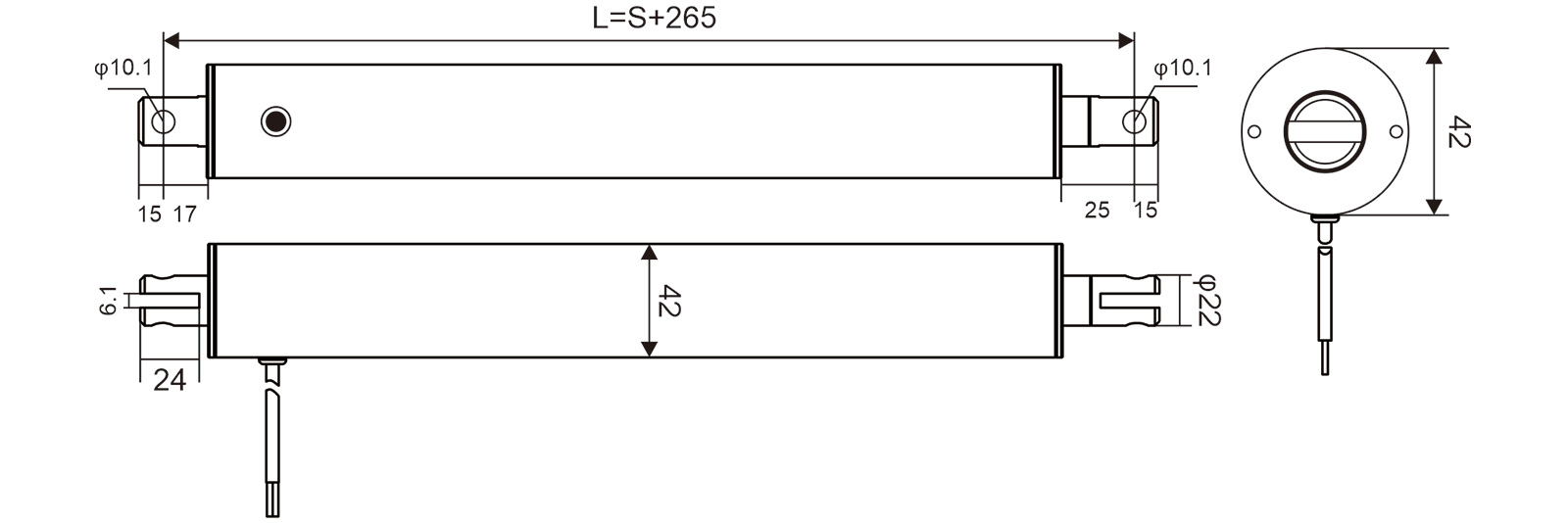

Outline Dimension Drawing
SRLA45-20

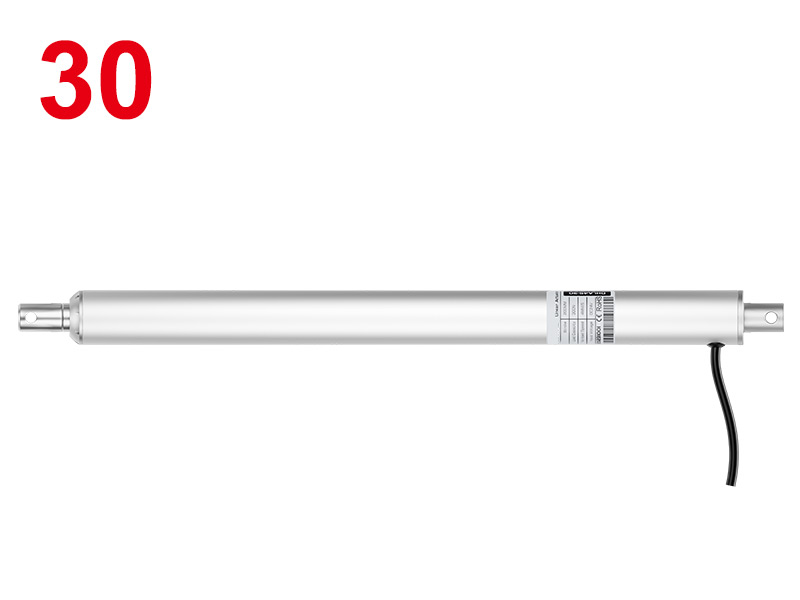

SRLA45-30
SRLA45-33
SRLA45-45
