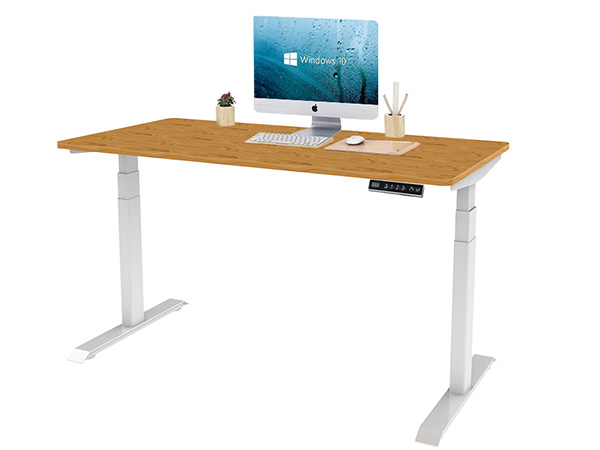

CTT-02-C3 Double-legged Lifting Table
3D-FILM LIST:

Introduction

DIHOOL's highly adjustable desk CTT-02-C is an essential design for an office power desk. A digital display switch with four preset memories helps to set the preferred and comfortable position. When you press the driven button on the programming box, the height ranges from a maximum of 45.3 inches to a minimum of 25.6 inches. The electric desk allows you to transform from a traditional sitting position to a flexible standing position, one of the best products for creativity and productivity. Standard model CTT-02-C3 has no crossbeam. If you want to add this attachment, please select CTT-02-C2!

Product features

● Column: Two columns
● Memory position: 4 memory position set

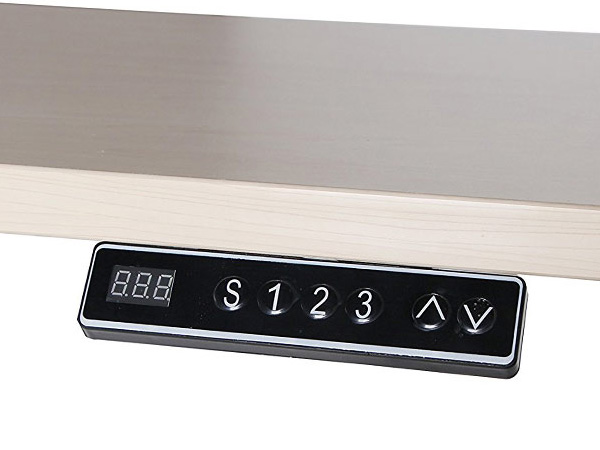

● Brilliant digital LED display indicates height selection
● Smooth and gentle soft-start and soft-stop
● Anti-collision technology to prevent damage
● Duty Cycle: 10% max 2 min, continuous use

Technical Parameters

Frame size W(1010-1700)XD575mm
Table size W1800XD800mm (maximum)

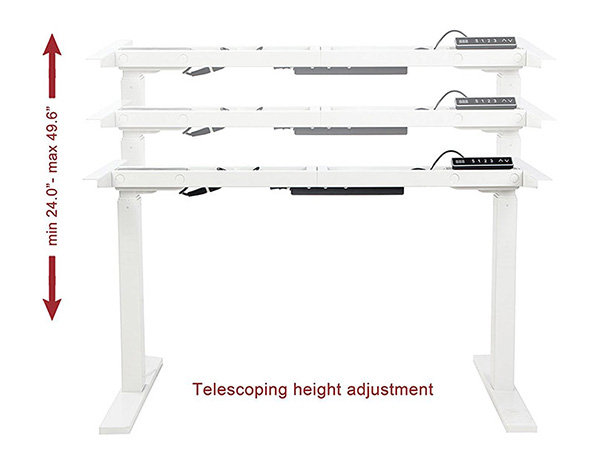

Height range of frame 610-1260mm
Maximum load 100kg
Speed 15~40mm/s(normal value:32mm/s)
Conventional color Black/white/silver
Outer packing L1080mm*W265mm*H235mm

Outline Dimension Drawing

CTT-02-C3 Double-legged Lifting Table
