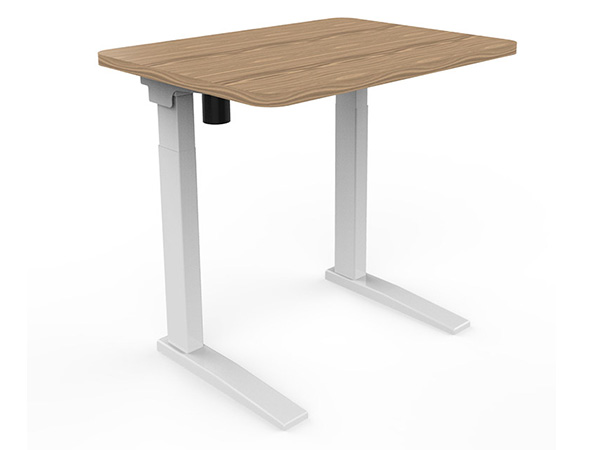

SRLT1-D04 Single Motor Lifting Table

Product Description

SRLT1-D04 elevating desk is a kind of table that can be raised or lowered freely. It is suitable for users of different heightsand is commonly used in learning desks used by growing children.And office workers can also use this product, in the office to use the lifting desk, can achieve sitting office and standing office two modes.

Product Features

● High cost performance ratio
● Electric control height adjustment, easy to operate, fast.
● The lifting process is smooth and synchronous.
● LED backlight control panel, real-time display desktop height
● Four memory preset buttons, four common memory heights
● High-quality cold-rolled sheet metal structural parts, strong structure, beautiful appearance

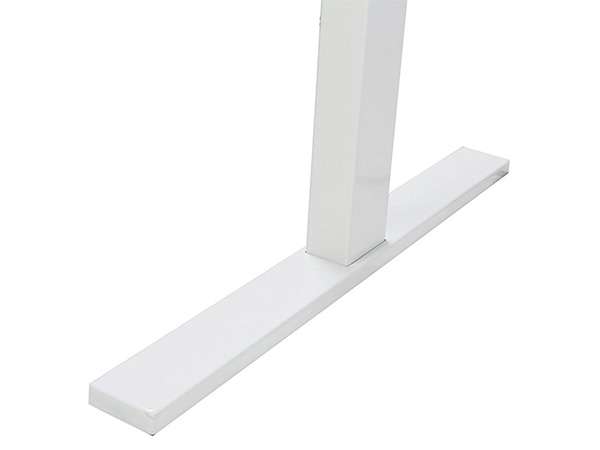

● The table foot is equipped with universal adjusting footpad, which automatically flat on the ground, and the table body is stable and does not shake.
● Beautiful and generous baffle, increase stability

Technical Parameters

Model SRLT1-D04
Voltage AC100~240V to DC24V
Height Adjustable Range 750~1250MM
Length Adjustable Range 1100~1600MM
Width 575MM
Number Of Motors 1
Section 3
Load Capacity 800N | 80kg
No-load Speed 25MM/S
Color RAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature 0°C~+40°C
IP Grade IP54
Operating Frequency 10% max 2min.continuous use
Limit Switches None
Panels None
Controller Hall Controller | With APP Hall Controller
Customized Table Leg | Hand Control | Color
Packaging L1080mm *W265mm *H235mm

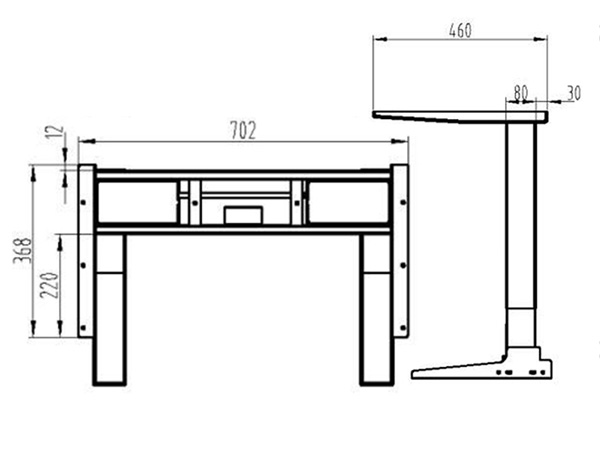

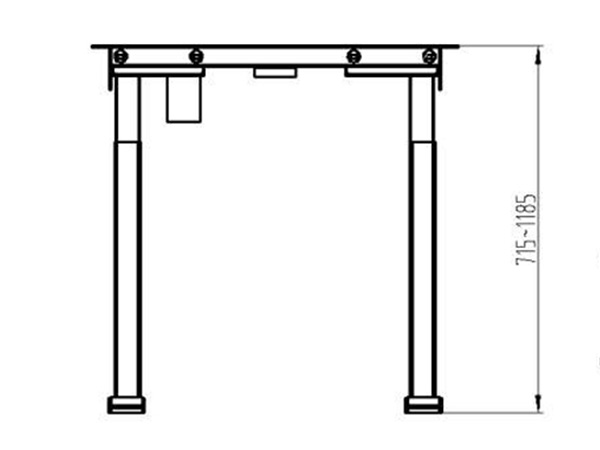

Outline Dimension Drawing

SRLT1-D04 Single Motor Lifting Table
