Product Description
SRLT3-I3 lifting table is a lifting table born to protect health. Using this product, you can stand and sit alternately to prevent potential workplace diseases and improve work efficiency.This product uses steel plate bracket, super bearing, anti - collision anti - pressure deformation, lifting process without shaking.
| Model |
SRLT3-I3 |
| Voltage |
AC100~240V to DC24V |
| Height Adjustable Range |
610~1260MM |
| Board Adjustable Range |
W(1870-2800)mm*D800mm |
| Width |
575MM |
| Number Of Motors |
3 |
| Section |
3 |
| Load Capacity |
2400N | 240kg |
| No-load Speed |
32MM/S |
| Color |
RAL9005(Black) / RAL7045(Gray) / RAL9016(White) |
| Operating Temperature |
0°C~+40°C |
| IP Grade |
IP54 |
| Operating Frequency |
10% max 2min. continuous use |
| Limit Switches |
None |
| Panels |
None |
| Controller |
Hall Controller | With APP Hall Controller |
| Customized |
Table Leg | Hand Control | Color |

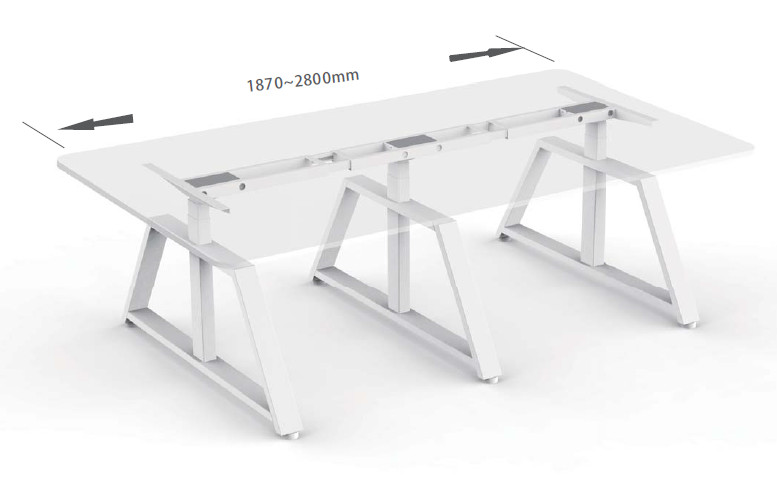

Outline Dimension Drawing
