DHLA4000 Electric Linear Actuator

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 12V/24V

Maximum load:4000N/400kg

Maximum Speed:26mm/s

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP54

Operating Frequency:10%,2min.on/

Operating Temperature: 0°C~+40°C

Manual function: not support


DHLA4000 electric push rod is a product used in industrial and agricultural machinery. It can be installed in the automatic control system of Windows such as construction vehicles, cleaning vehicles, ships and cargo holds.Small capacity, compact design, high protection level, its installation is not restricted by terrain or distance, not only energy saving and easy to automatic operation.

Technical Parameters

Voltage DC24V
Speed (MM/S) 5 10 15 26
Load Pull Capacity (N) 4000 2000 1300 750
Load Push Capacity (N) 4000 2000 1500 750
Noise 48dB
Limit switches Built-in
Operating Frequency 10% max 2min. continuous use
Operating Temperature 0°C~+40°C
IP Grade IP54
Inner tube Aluminum Tube
Optional Configuration:      1.Hall Sensor            2.Magnetic Sensor      3.Limit Switches Feedback

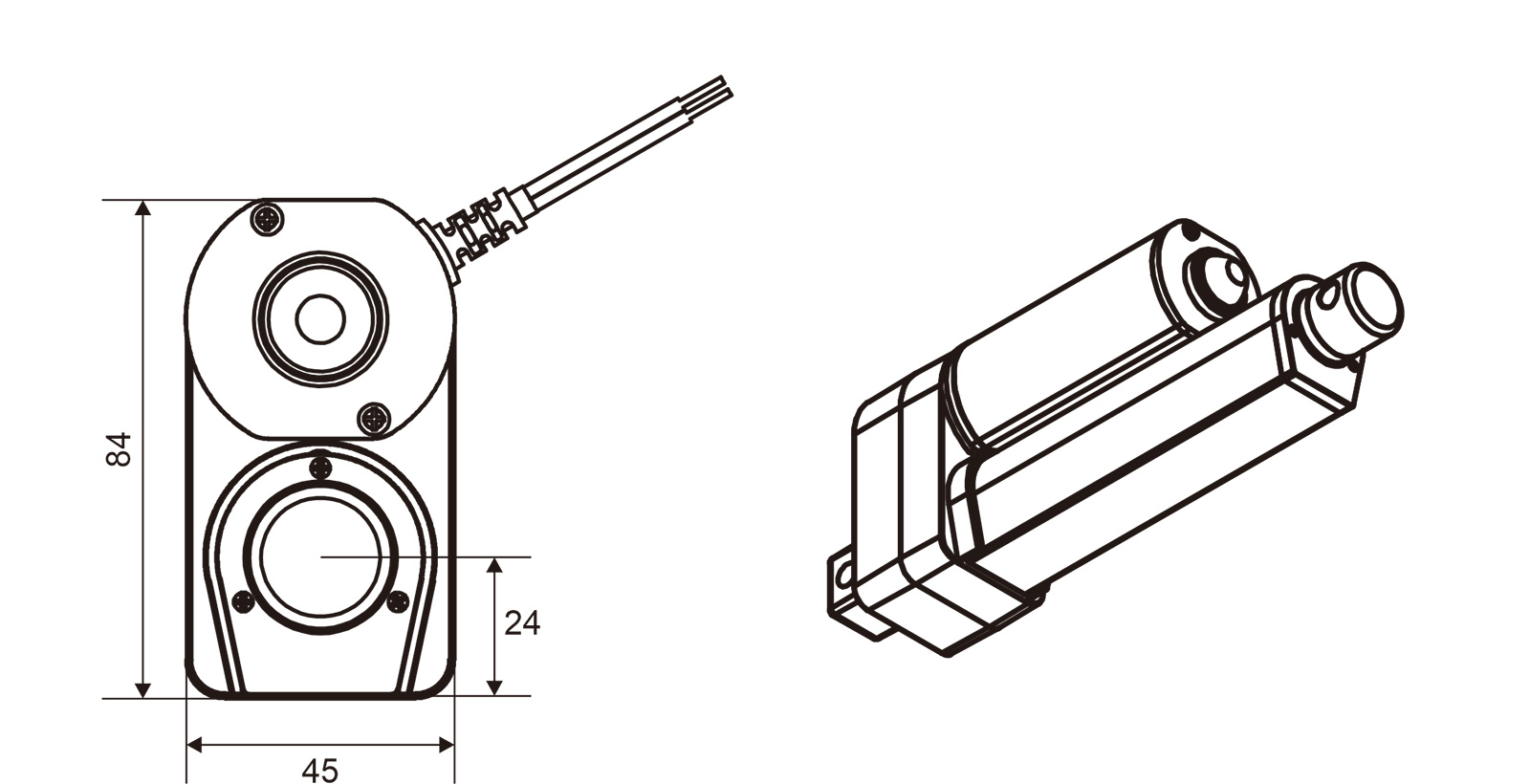

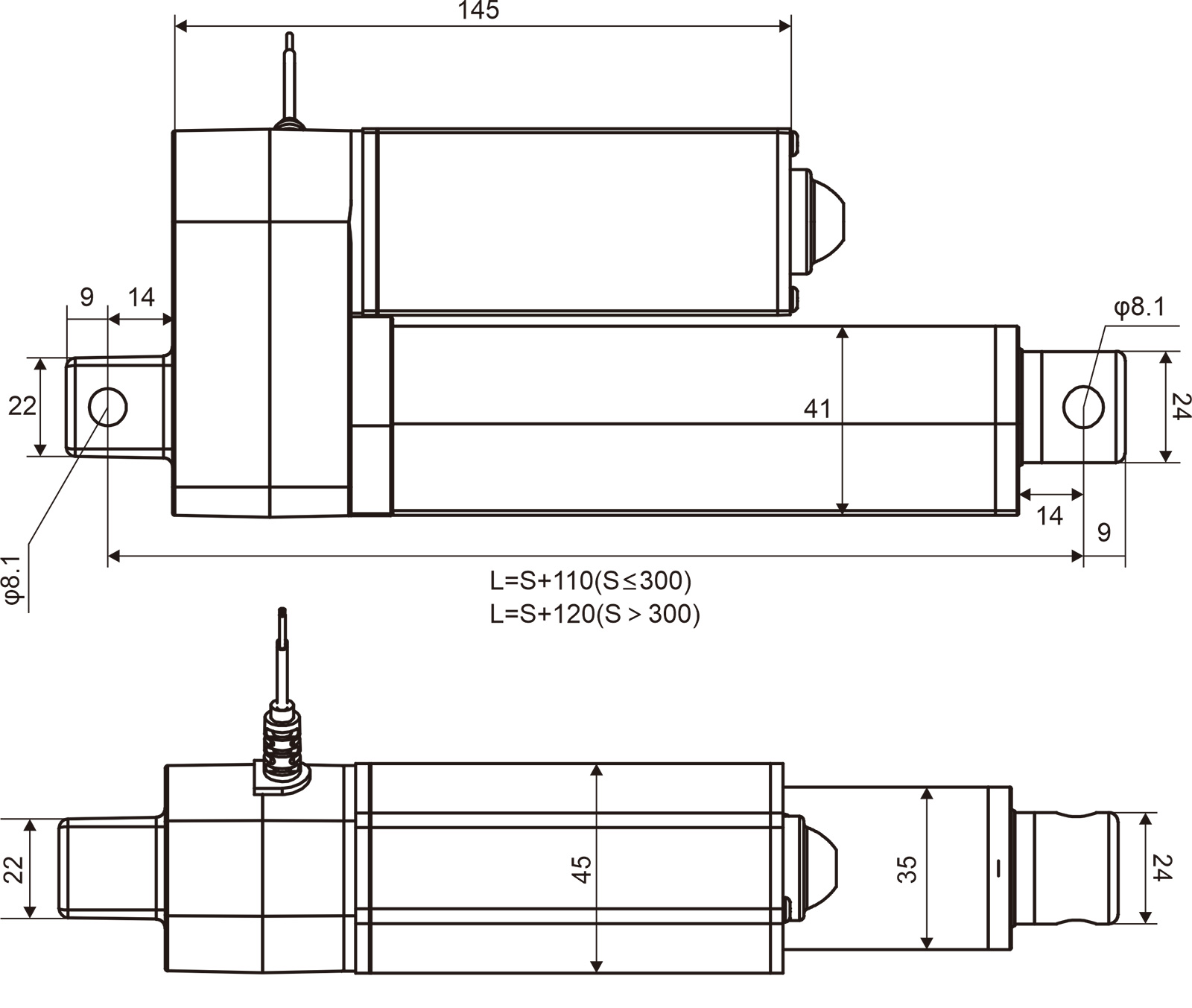

Outline Dimension Drawing

DHLA4000 Electric Linear Actuator
Optional Configuration:
  • Normal
Installation method:
  • A1
  • 50MM
  • 100MM
  • 150MM
  • 200MM
  • 250MM
  • 300MM
  • 350MM
  • 400MM
  • 450MM
  • 500MM
  • 550MM
  • 600MM
  • 650MM
  • 700MM
  • 750MM
  • 800MM
  • 850MM
  • 900MM
  • 950MM
  • 1000MM
  • DC24V5MMS4000N
  • DC24V10MMS2000N
  • DC24V15MMS1300N
  • DC24V26MMS750N
