Linear Actuators 12Volt 2000N

DHLA2000 Electric Linear Actuator

PDF

E-MAIL

Product features

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：2000N/200kg

Maximum Speed：55mm/s

Maximum Stroke：600mm

Limit Switches：Built-in

Protection Level：IP54

Operating Frequency：10%，2min.on/18min.off

Operating Temperature： -26°C~+65°C

Manual function: not support

Introduction

DHLA2000 electric push rod is a multi-purpose product suitable for various industries, such as electric hospital bed, home care hospital bed, furniture, office furniture, and industrial and other different USES.Excellent product performance, strong output load, so that the product in the industrial application can shoulder heavy responsibilities.

Technical Parameters

Voltage	DC24V
load Speed (MM/S)	4	4	7	13	28	40
No-load Speed (MM/S)	8	6	12	20	40	55
Load Pull Capacity(N)	2000	1500	1000	500	300	200
Load Push Capacity(N)	2000	1500	1000	500	300	200
Voltage	DC12V
load Speed (MM/S)	4	4	7	14	30	35
No-load Speed (MM/S)	6	8	15	25	45	55
Load Pull Capacity(N)	2000	1500	1000	500	300	200
Load Push Capacity(N)	2000	1500	1000	500	300	200
Stroke Length (mm)	10-600

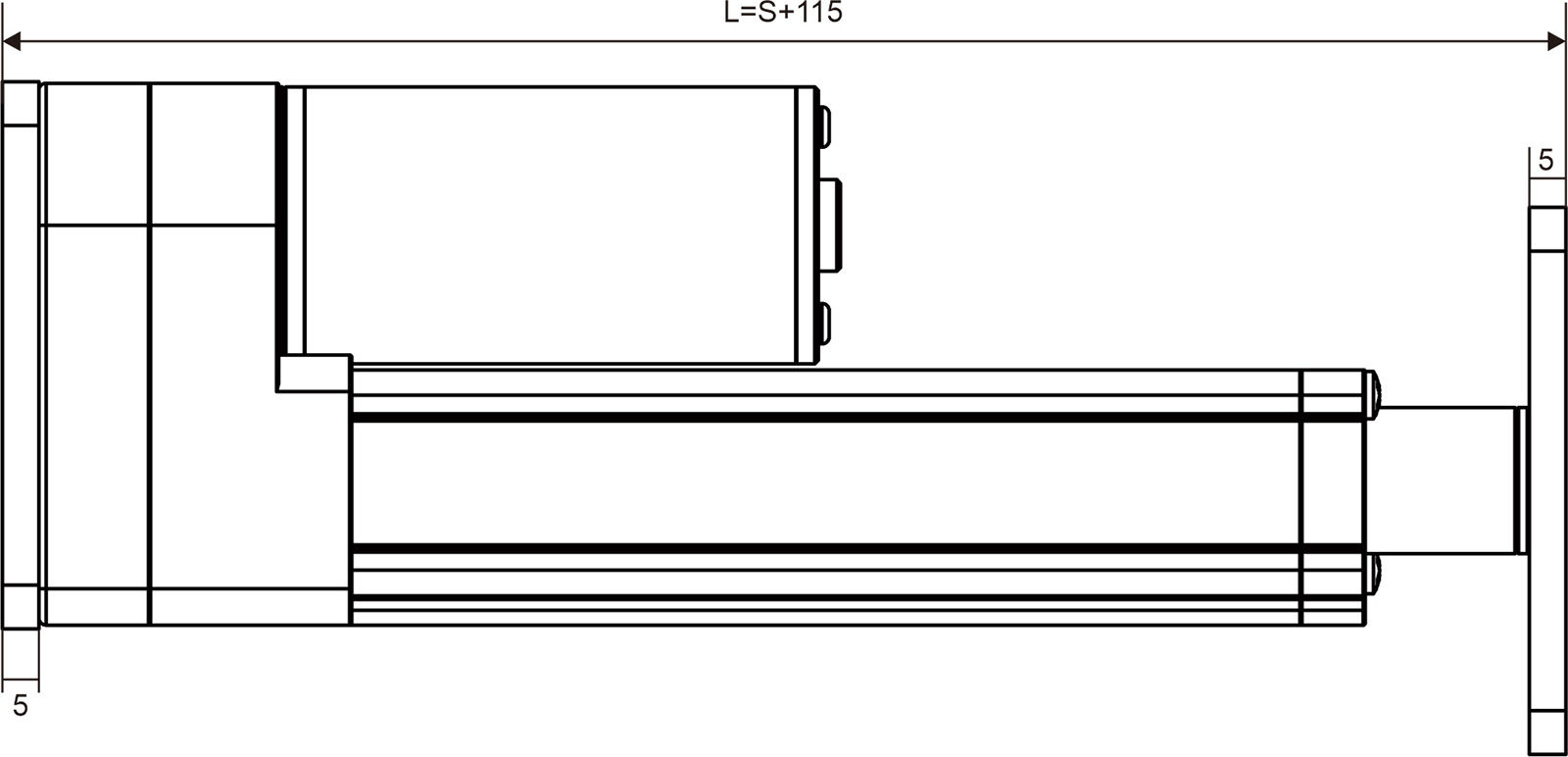

Min Installation Length	A1:Stroke+105±2 A2:Stroke+115±2
Color	Silver grey
Limit switch	Built-in
Usage frequenc	10% max 2min. continuous use
Use ambient temperature	-26°C~+65°C
Optional Configuration： 1.Hall Sensor 2.Magnetic Sensor 3.Limit Switches Feedback

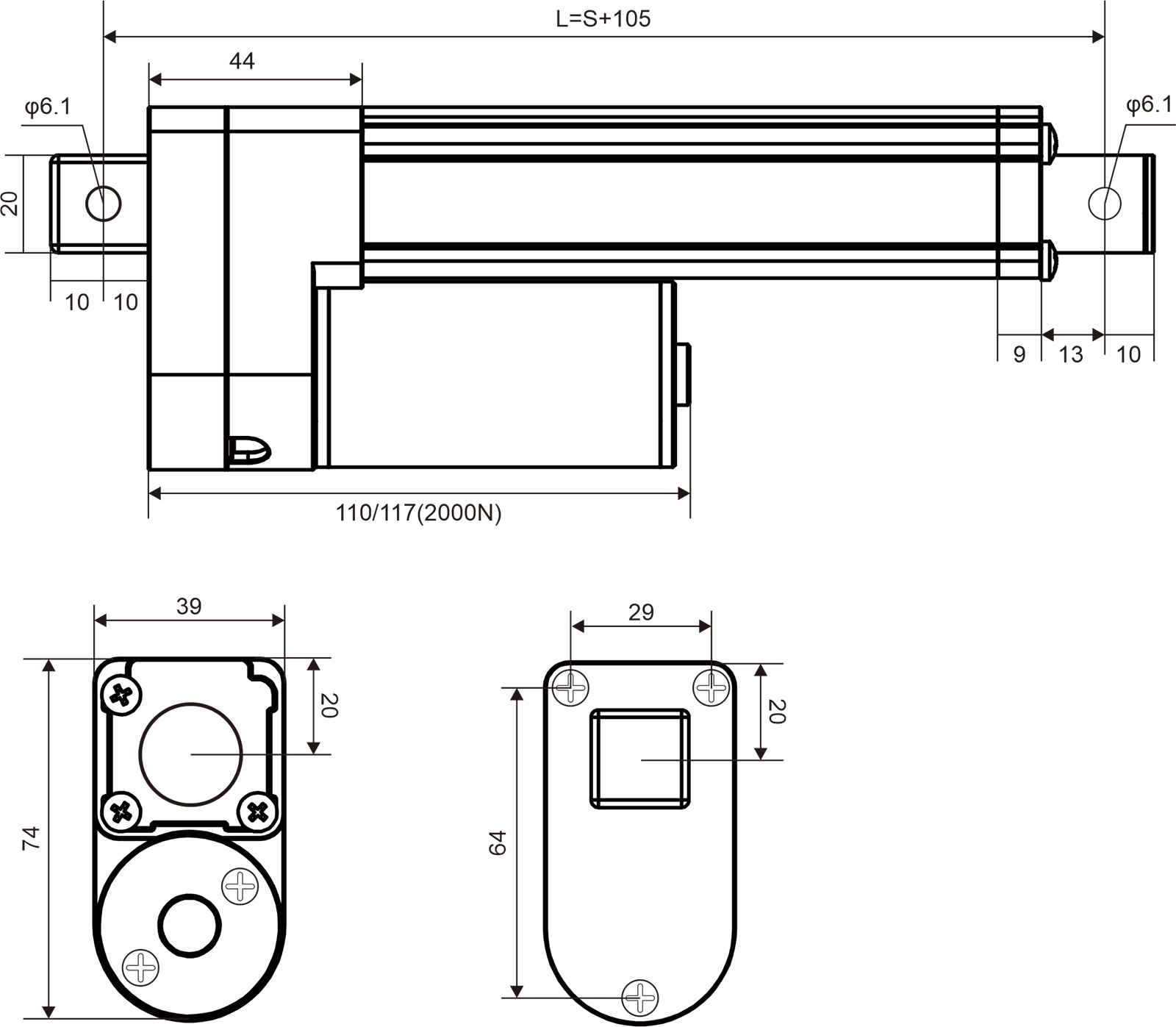

Outline Dimension Drawing
