Product features
Lead Screw Type：Trapezoidal thread
Input voltage：DC6V | DC12V | DC24V
Maximum load：180N/18kg
Maximum Speed：150mm/s
Maximum Stroke：200mm
Limit Switches：Built-in
Protection Level：IP43 / IP65
Operating Frequency：10% max 2min. continuous use
Operating Temperature： -10°C~+50°C
Manual function: not support
Introduction
SRLA130 Micro electric linear actuator, there are two installation methods, one is through the lifting lugs, the second is through the four holes in the motor position to fix, the stroke is between 10-150MM, the thrust is between 180N-8N, This DC12V motor has a low speed and a high speed, so the noise is relatively large. The built-in film circuit board plays the role of upper and lower limit. The outer tube and the inner tube are made of aluminum alloy.
This mini actuator is often used in small load fields such as range hoods, toys, Christmas trees, etc.
Technical Parameters
Outline Dimension Drawing

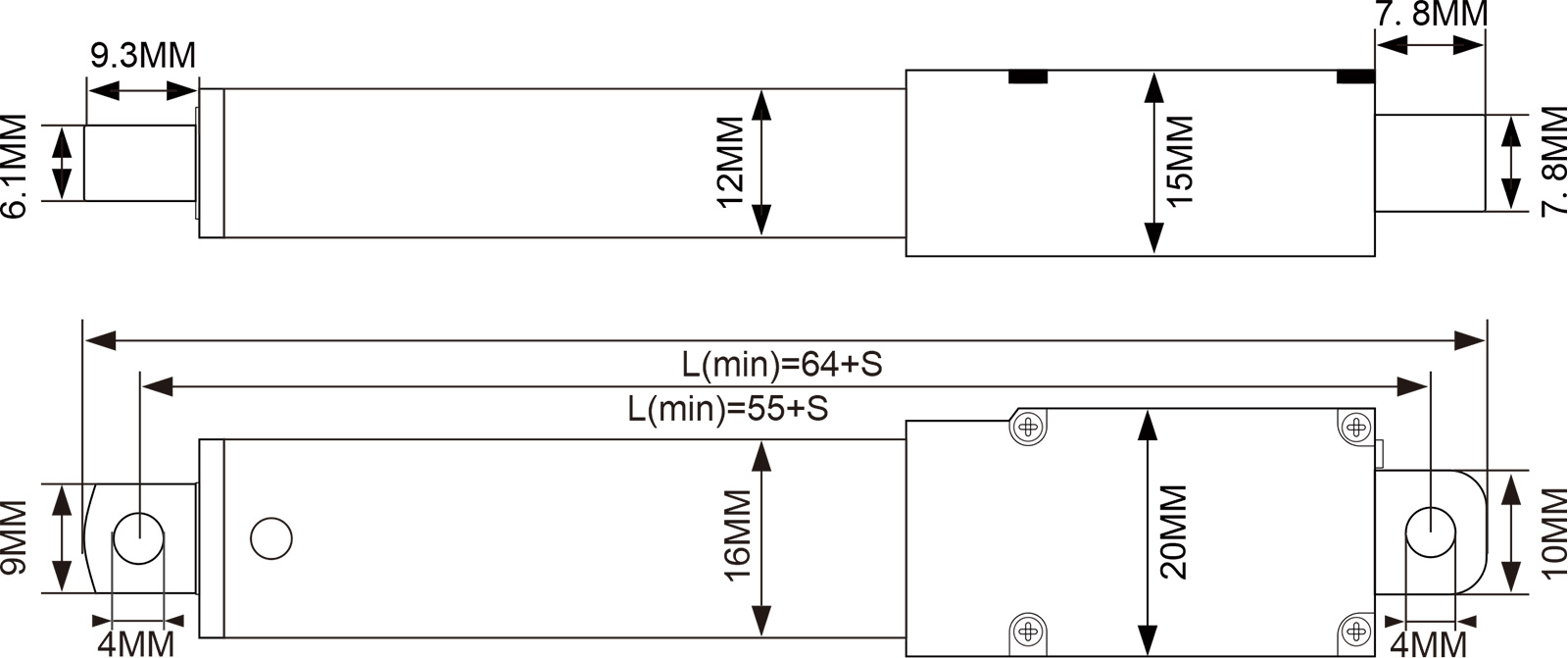

DHLA130-A1(Standard)

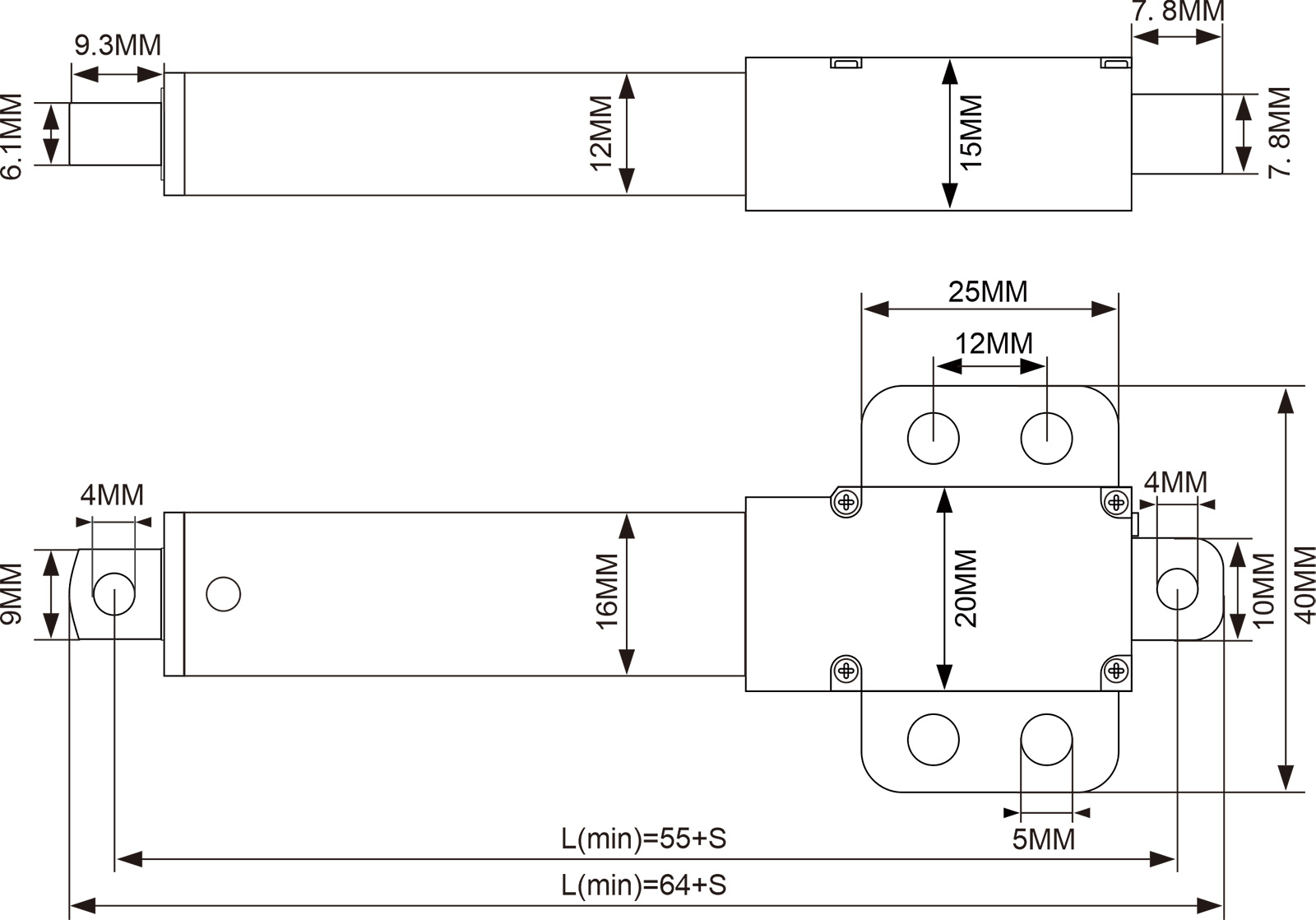

DHLA130-A2(Standard)
DHLA130-A1(Hall-IP65)
DHLA130-A2(Hall-IP65)
DHLA130-A1(IP65)
DHLA130-A2(IP65)
CUSTOMIZED
Customizable Mounting Hole 5MM
DW(No lifting ears)
