Lifting Desk Double-legged Lifting Table(with coupling beams) CTT-02-C2

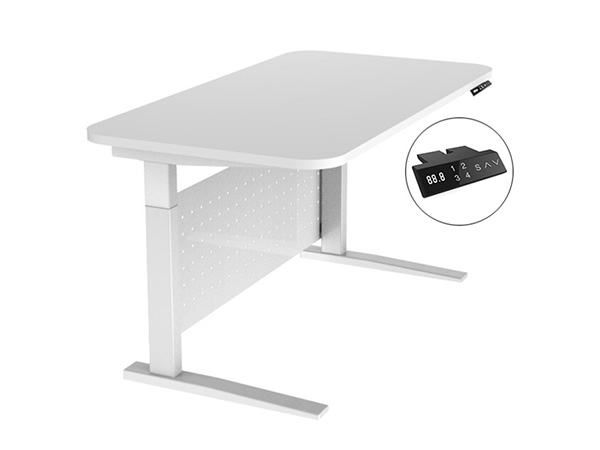

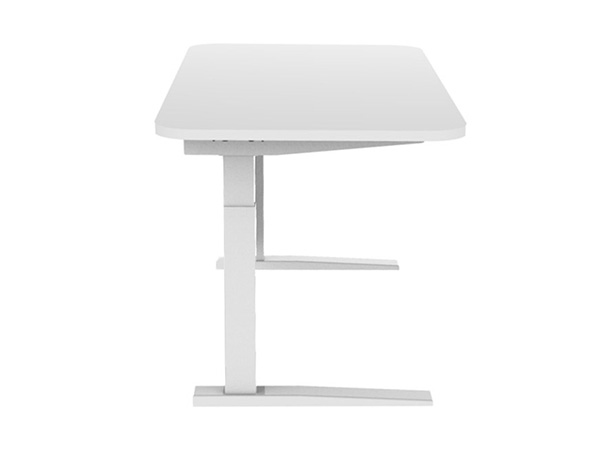

SRLT2-C2 Double-legged Lifting Table(with coupling beams)

Product Description

SRLT2-C2 lifting table is powered by electricity. The height of the lifting table can be adjusted by controlling the mechanical device with an electric motor. The height of the lifting table can also be adjusted by controlling the air pressure bar or hydraulic bar with a compressor.Advantages: small power consumption, stable and beautiful style, can rise and fall wide range.

Product features

● Electrical control height adjustment, easy to operate, fast.
● The lifting process is smooth, synchronous and low noise.
● LED backlight control panel, real-time display desktop height
● Four memory preset buttons, four common memory heights
● Metal structural parts adopt high quality cold rolled sheet, which has strong structure and beautiful appearance.
● The floor is equipped with universal adjusting footpads, which automatically flat the floor, and the table is stable and not shaking.
● Beautiful and generous baffle, increase stability

Technical Parameters

Model	SRLT2-C2
Voltage	AC100~240V to DC24V

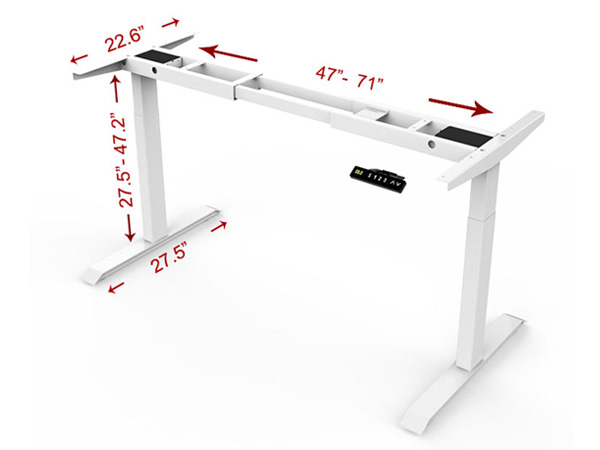

Height Adjustable Range	700~1200MM
Length Adjustable Range	1010~1700MM
Width	575MM
Number Of Motors	2
Section	2
Load Capacity	1600N \| 160kg
No-load Speed	40MM/S, 15MM/S
Color	RAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature	0°C~+40°C
IP Grade	IP54
Operating Frequency	10% max 2min.continuous use
Limit Switches	None
Panels	None
Controller	Hall Controller \| With APP Hall Controller
Customized	Table Leg \| Hand Control \| Color
Packaging	L1080mm W265mm H235mm
