DHLA57 Stepper Electric Linear Actuator

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 9~32V

Maximum load:1750N/175kg

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP43

Operating Frequency:10%,2min.on/

Operating Temperature: 0°C~+40°C

Manual function: not support


DHLA57 type electric putter is a highly efficient mechanical system, to produce thrust output high wear resistance of thrust unit parts, guarantee the long time, under the environment of high reliability, full of mechanical principle to ensure no any medium leakage (not frozen), conform to the requirements of the safety and environmental protection, resting not consume energy, operation and maintenance cost is low.

Technical Parameters

Voltage DC9-32V
Motor 57HB113 57HB100 57HB82 57HB76 57HB54 57HB41
Motor torque 3.5NM 3.1NM 2.5NM 2.3NM 1.3NM 0.64NM
Maximum thrust (N) 1750 1550 1250 1150 650 320
Load Pull Capacity (N) 5-1500
Load Push Capacity (N) 5-1700
Stroke Length (mm) 50mm-1000mm
Limit switches Built-in
Operating Frequency 10%max 2min. continuous use
Operating Temperature 0°C~+40°C
IP Grade Ip43
Inner tube Aluminum tube
Lead screw Type Type T

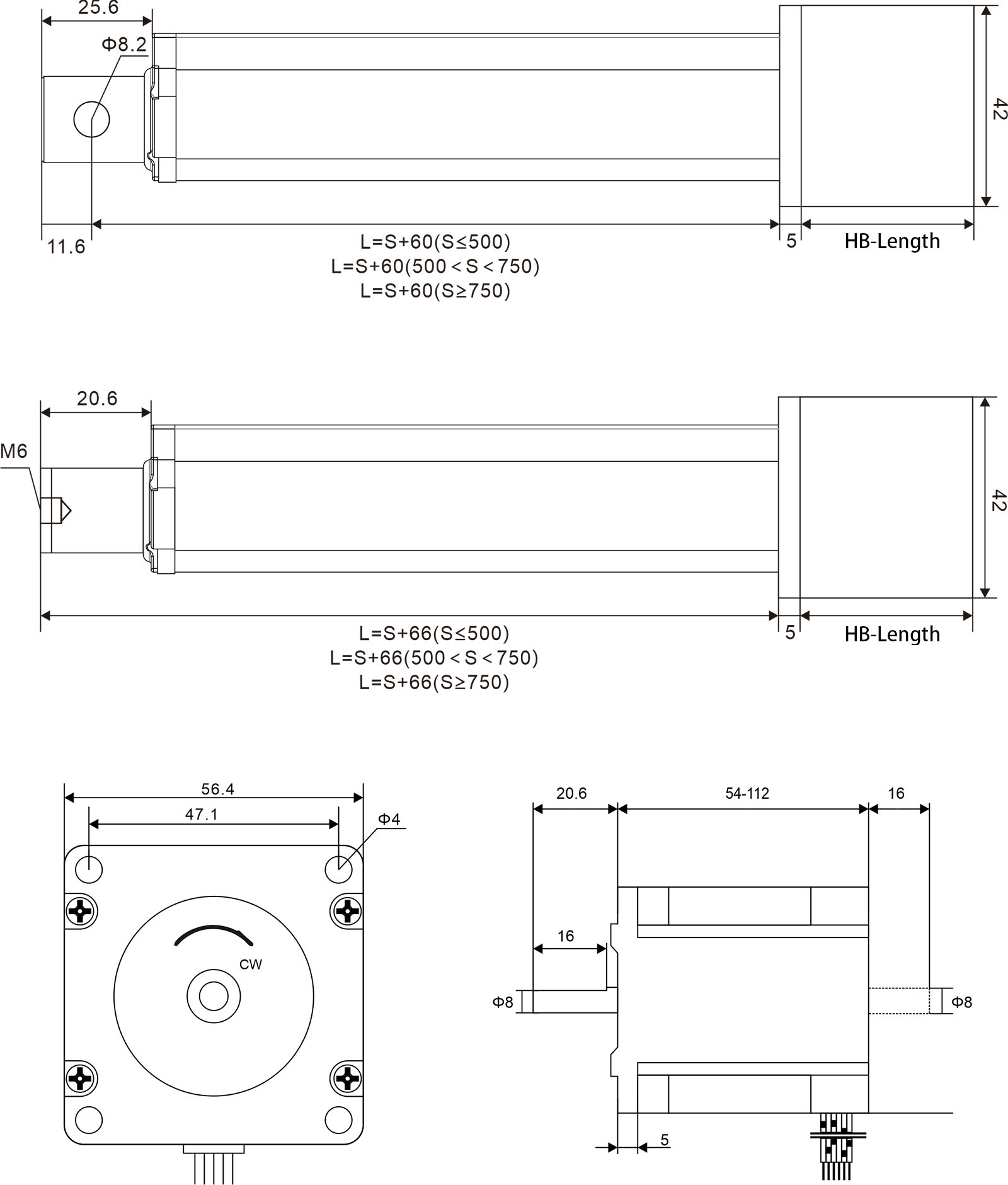

Outline Dimension Drawing

DHLA57 Stepper Electric Linear Actuator
