Introduction
SRLC800 electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM. Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places.
Technical Parameters
| Model |
500P-EC |
650P-EC |
500P |
650P |
| Initial Height |
625MM |
560MM |
650MM |
560MM |
| Final Height |
1125MM |
1210MM |
1150MM |
1210MM |
| Stroke Length |
500MM |
650MM |
500MM |
650MM |
| Section |
2 |
3 |
2 |
3 |
| Input Voltage |
DC 24V - DC 32V |
| Load Pull Capacity |
800N/1000N |
1200N |
| Load Push Capacity |
800N/1000N |
1200N |
| Self-locking Capacity |
800N/1000N |
1200N |
| Maximum Power |
50W |
55W |
| No-Load Speed |
15MM/S / 7.5MM/S |
25MM/S |
| Color |
RAL9005(Black) |
| Usage Frequency |
10% Work System, Maximum 1 Hour Continue Working |
| Ambient Temperature |
-10°C ~ 60°C |
| Optional Features |
Hall Sensor |
| Limit Switches |
None |
| Install Screws |
M6*16MM, If the screw is too long, it will damage the motor |
| Rated Working Capacity |
80% of Maximum Load, Unable to maintain maximum load operation for a long time |
| Note |
2 columns lifting system and 4 columns lifting system, any columns cannot exceed 100KG load and needs to be kept fixed |
Outline Dimension Drawing

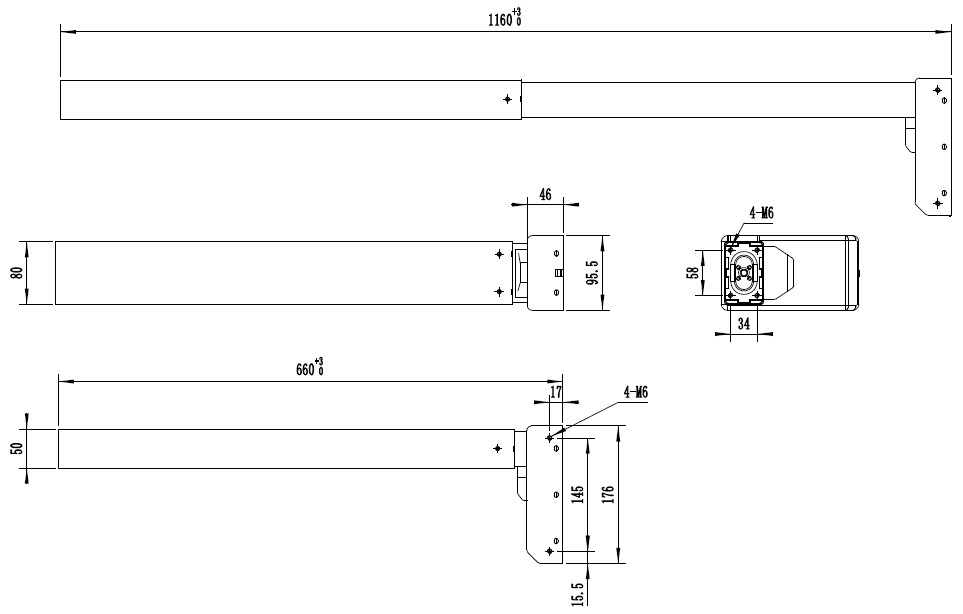

SRLC800-500P-C2

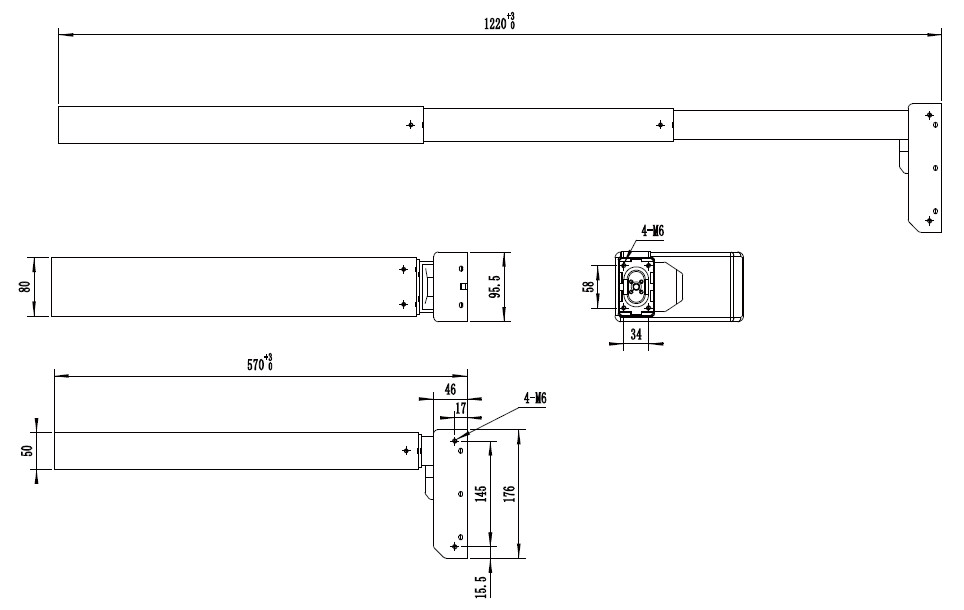

SRLC800-650P-C3
