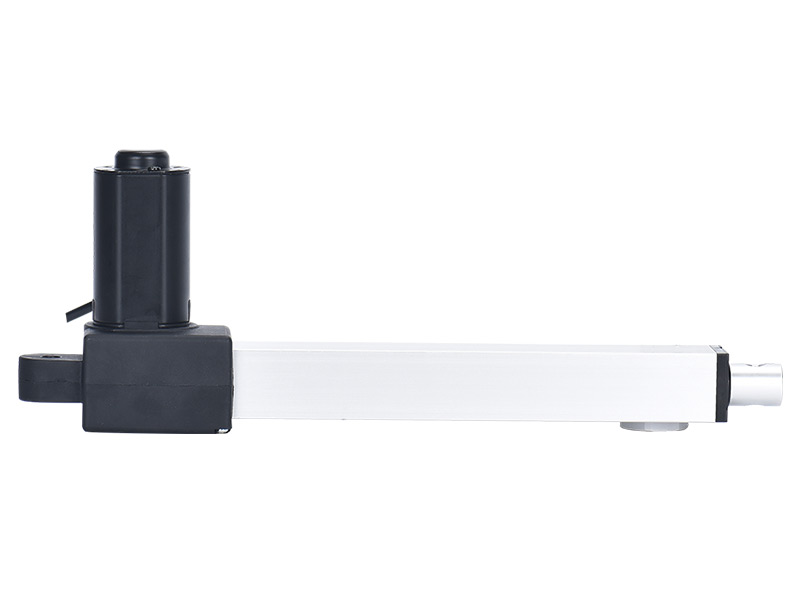

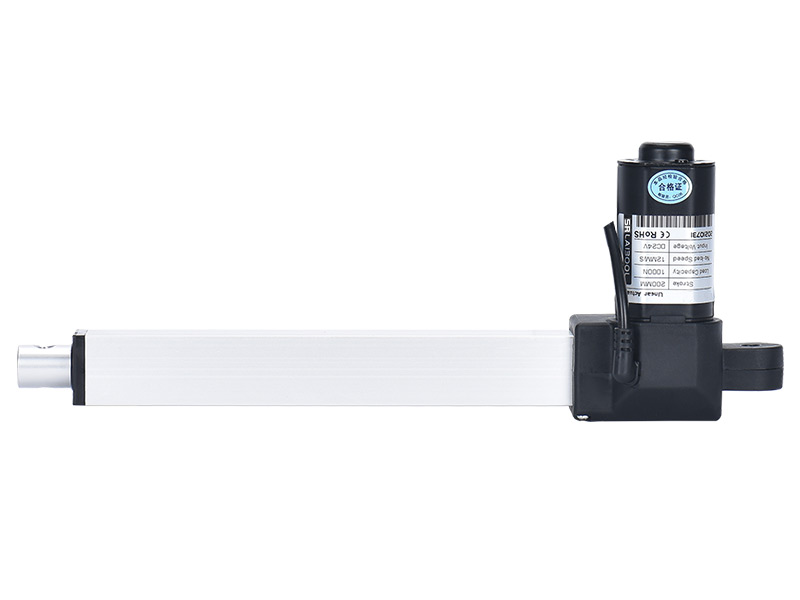

PRODUCT DESCRIPTION
SRLA1300L is a product specially developed and designed for the furniture and medical industries. At the same time, the product can also be used across industrial products. This product has a compact installation size, uses a high horsepower permanent magnet DC motor, and has an ultra-quiet design. It is suitable for the medical, furniture, and industrial industries. Indispensable and important product.
TECHNICAL PARAMETERS
| Voltage |
DC24~32V |
| No-load Speed (MM/S) |
5 |
12 |
25 |
40 |
52 |
| Load Pull Capacity (N) |
1500 |
1000 |
500 |
350 |
300 |
| Load Push Capacity (N) |
1500 |
1000 |
500 |
350 |
300 |
| Self-locking Capacity (N) |
1500 |
1000 |
500 |
350 |
300 |
| Voltage |
DC12~19V |
| No-load Speed (MM/S) |
5 |
10 |
20 |
30 |
40 |
66 |
| Load Pull Capacity (N) |
1200 |
800 |
400 |
300 |
200 |
150 |
| Load Push Capacity (N) |
1200 |
800 |
400 |
300 |
200 |
150 |
| Self-locking Capacity (N) |
1200 |
800 |
400 |
300 |
200 |
150 |
| Stroke Length |
30MM-1000MM |
| Operating Temperature |
-10°C~+45°C |
| Limit Switches |
Built-in |
| Operating Frequency |
10% max 2min. continuous use |
| Inner Tube |
Aluminum tube |
| Lead screw Type |
Type T |
| The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces |
OUTLINE DIMENSION DRAWING
