Product features
Material: Aluminum Alloy Steel
Rated power: 240W
Motor: Permanent magnet DC Motor drive;
Standard protection grade: IP65
Introduction
DHLA10000 Electric Linear Actuator is suitable for remote control and widely used for opening and closing of damper, valve, gate, material loading and unloading, flow control and so on in electric power, chemical industry, metallurgy, mining, light industry,transportation, shipping and other departments.It has been used by more and more departments to replace the mechanical hand, hydraulic valve, reducer transmission mechanism of the automatic device.
| Motor Power | 240W | |||||||
| Voltage | DC24V | |||||||
| Speed(MM/S) | 5 | 8 | 12 | 17 | 22 | 33 | 67 | 160 |
| Load Pull Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Load Push Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Self-locking Capacity(N) | 11000 | 10000 | 8000 | 5000 | 4000 | 3000 | 3000 | 2000 |
| Voltage | DC12V | |||||||
| Speed(MM/S) | 5 | 8 | 12 | 17 | 22 | 33 | 67 | 160 |
| Load Pull Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Load Push Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Self-locking Capacity(N) | 11000 | 10000 | 8000 | 5000 | 4000 | 3000 | 3000 | 2000 |
| Voltage | DC48V | |||||||
| Speed(MM/S) | 5 | 8 | 12 | 17 | 22 | 33 | 67 | 160 |
| Load Pull Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Load Push Capacity(N) | 10000 | 7000 | 6000 | 4000 | 3000 | 2000 | 1500 | 750 |
| Self-locking Capacity(N) | 11000 | 10000 | 8000 | 5000 | 4000 | 3000 | 3000 | 2000 |
| Motor Power | 240W | |||||||
| Material |
304 Stainless Steel + Aluminum
|
|||||||
| Mechanical Life |
More than 300,00 times
|
|||||||

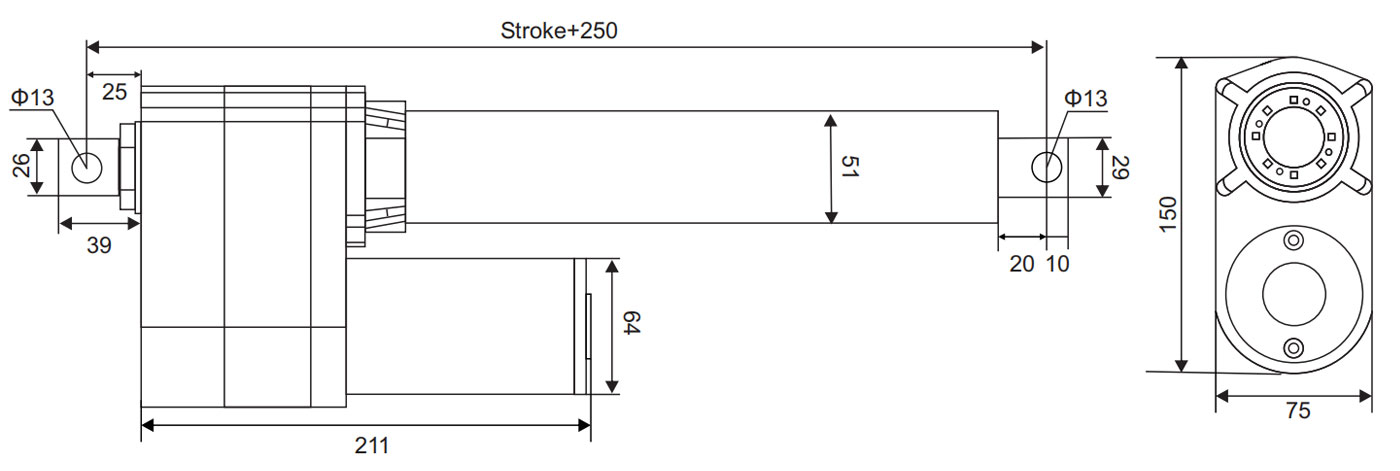

DHLA10000-A1

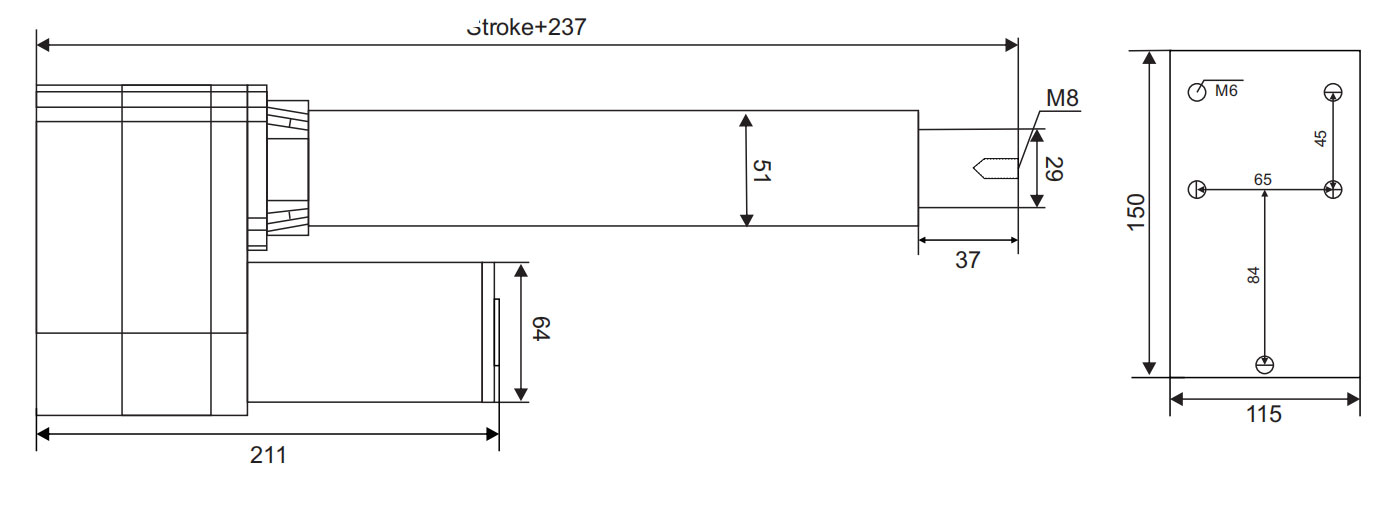

DHLA10000-A2
