SRLA35 Electric Linear Actuator

PDF

3D-FILM LIST:

DHLA35

E-MAIL

Product features

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：2500N/250kg

Maximum Speed：22mm/s

Maximum Stroke：1000mm

Limit Switches：Built-in

Protection Level：IP56

Operating Frequency：10%，2min.on/18min.off

Operating Temperature：0℃~+40℃

Manual function: not support

Introduction

SRLA35 is a pen type electric linear actuator with a compact design. The diameter of the actuator is 35MM, the maximum load capacity is 2500N, the maximum speed is 22MM/S, and the maximum length can be customized from 10-1500MM, it has built-in limit switch. There is 2 installation(A1,A2) method, A1 type means Ф8 lug installation method, A2 type means flat end installation method.
The aluminum tube is made of high-quality aluminum alloy material, and has a beautiful appearance through oxidation treatment.

Technical Parameters

Voltage	DC24~32V
No-load Speed (MM/S)	8	15	22
Load Pull Capacity (N)	2500	1800	1000
Load Push Capacity (N)	2500	1800	1000
Self-locking Capacity (N)	2500	1800	1000
Voltage	DC12V
No-load Speed (MM/S)	8	15	22
Load Pull Capacity (N)	2000	1500	800
Load Push Capacity (N)	2000	1500	800
Self-locking Capacity (N)	2000	1500	800
Stroke Length	50mm-1000mm
Operating Temperature	0℃~+40℃
Limit Switches	Built-in
Operating Frequency	10% max 2min. continuous use
Inner Tube	Aluminum Tube
Lead Screw Type	Type T
Optional Configuration	IP66 Waterproof

Outline Dimension Drawing

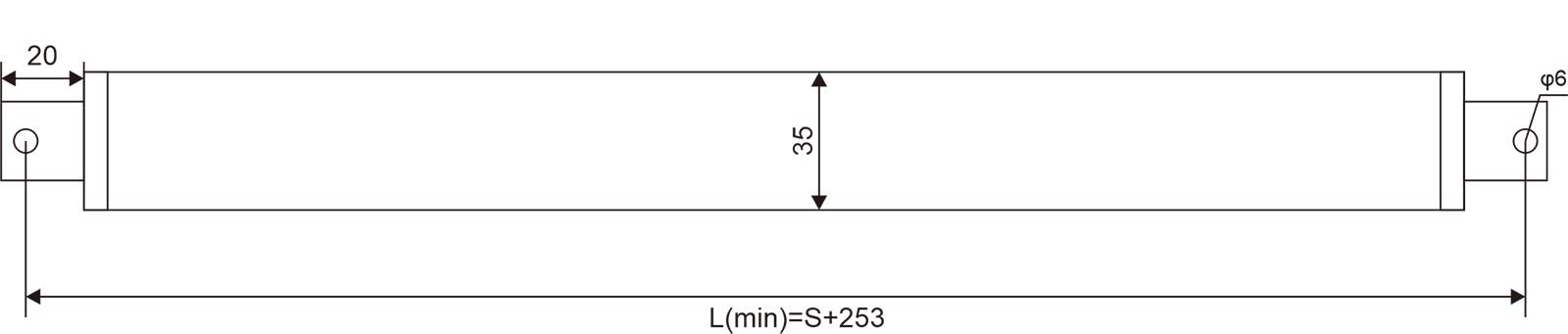

SRLA35-A1

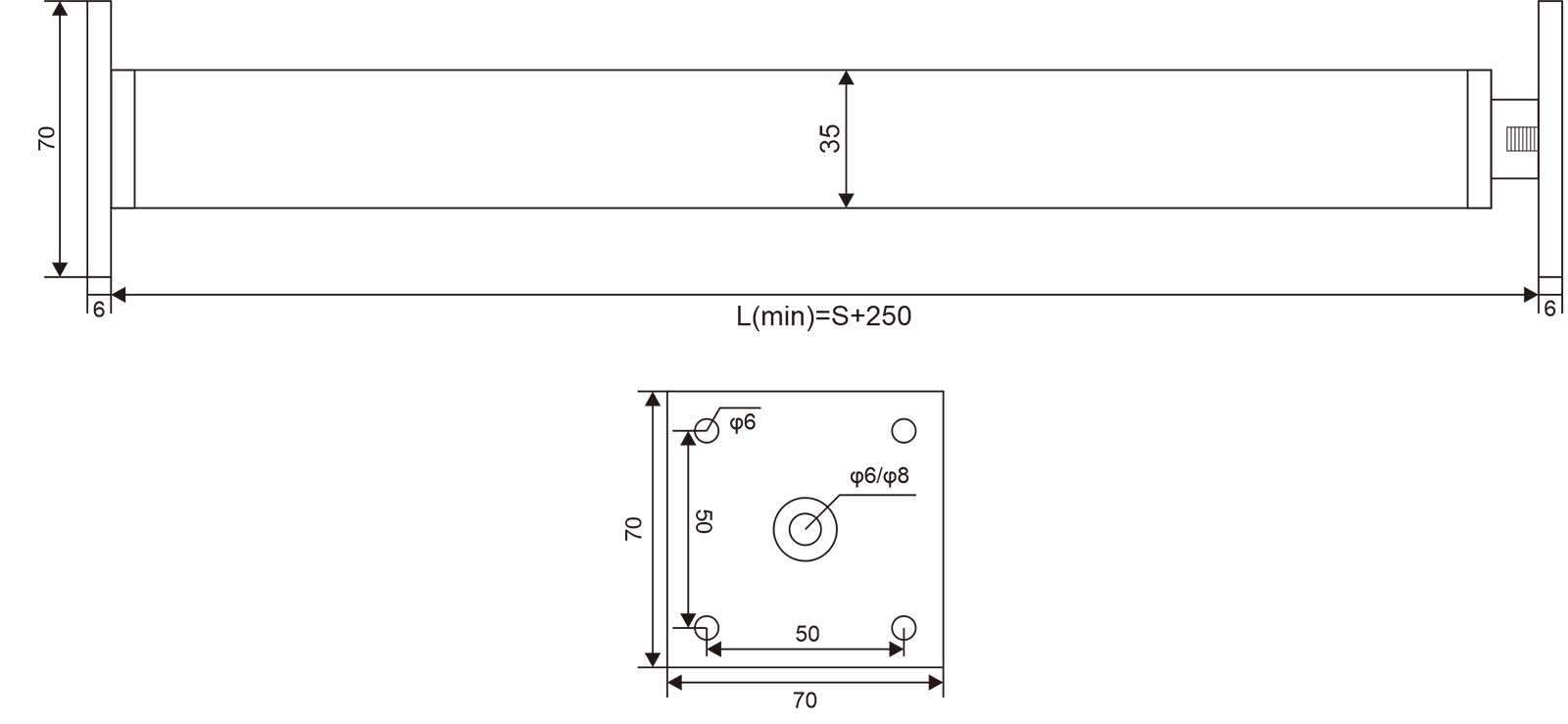

SRLA35-A2
