SRLA750 Electric Linear Actuator

PDF

E-MAIL

Product features

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：1500N/150kg

Maximum Speed：90mm/s

Maximum Stroke：800mm

Limit Switches：Built-in

Protection Level：IP54

Operating Frequency：10% max 2min. continuous use

Operating Temperature： 0°C~+40°C

Manual function: not support

Introduction

SRLA750 electric linear actuator was first developed. The product has no gearbox structure. The motor directly drives the drive shaft to work. The noise is relatively large. Our company has reduced the noise through multiple modifications to the structure and improved the load capacity of the product. The maximum load force can reach 1500N, and the self-locking force is 100KG,Noise reduced from 50db to 40dB.
This product is suitable for construction machinery, agricultural machinery, environmental protection and other industries.

Technical Parameters

Voltage	DC12~19V / DC24~32V
No-load Speed (MM/S)	5	10	20	30	50	90
Load Push Capacity (N)	1500	1000	500	300	200	100
Load Pull Capacity (N)	1000	700	350	200	150	70
Self-locking Capacity (N)	1000	700	350	200	150	70
Stroke Length	30mm-800mm
Motor Power	20W
Limit Switches	Built-in
Material	Aluminum
Noise	45~60dB
Inner Tube	Aluminum Tube
Operating Temperature	0°C~+40°C
Operating Frequency	10% max 2min. continuous use
Lead Screw Type	Type T
Mechanical Life	More than 30,000 times
Optional Configuration: 1.Magnetic Induction Switch 2.Upper and lower limit feedback

Outline Dimension Drawing

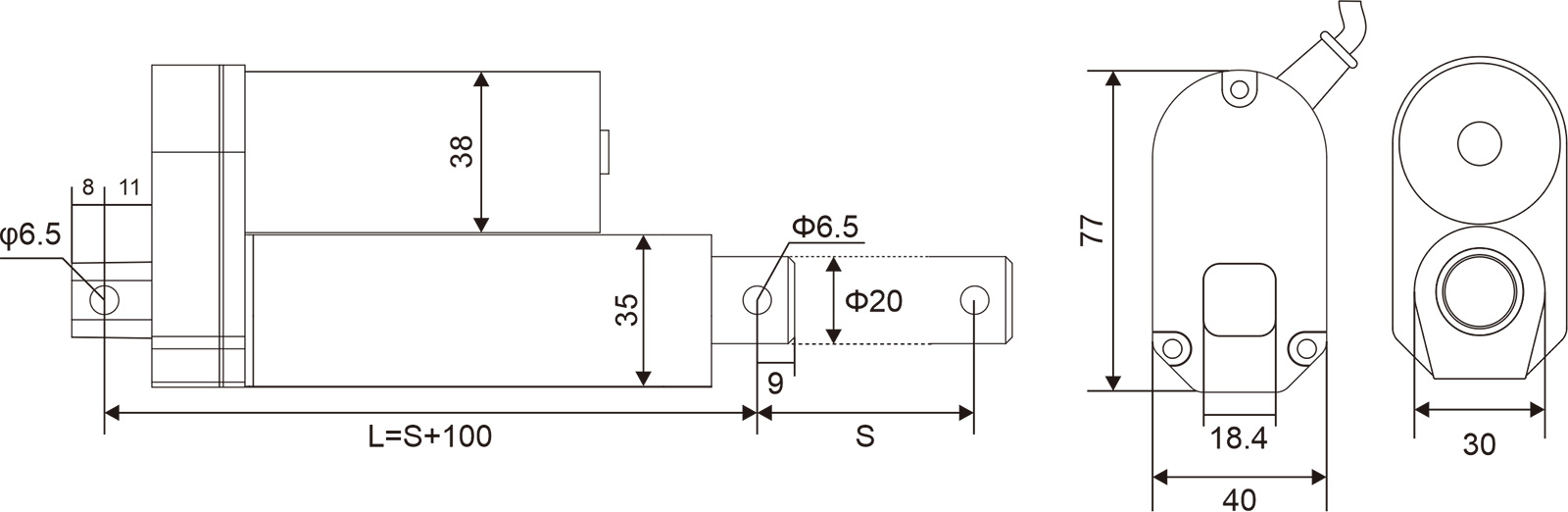

SRLA750-A1

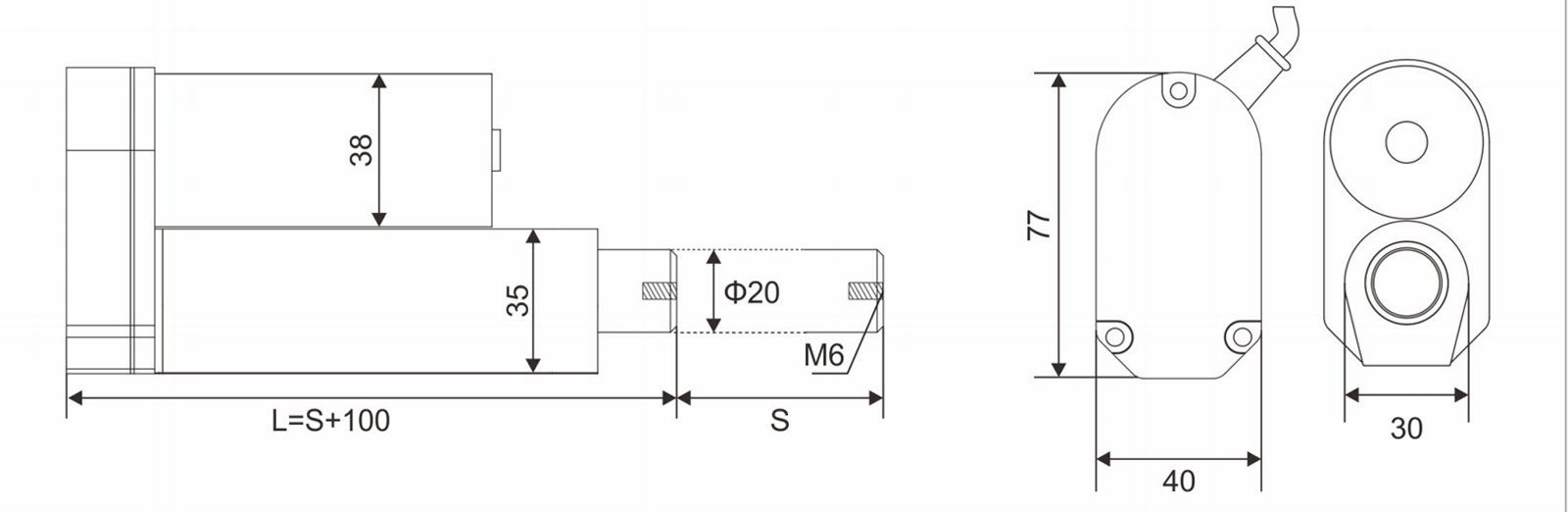

SRLA750-A2
