SRLB Electric Lifting Bracket

E-MAIL

PRODUCT DESCRIPTION

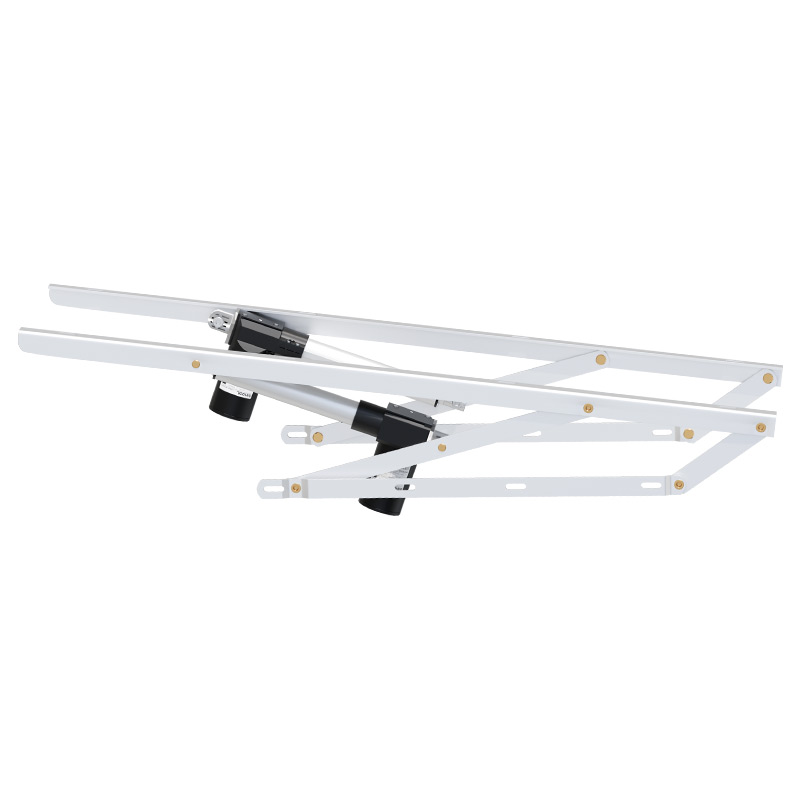

SRLB electric lifting bracket is mainly used in tatami storage beds, heavy cabinet doors, and hidden cabinet doors. The electric linear actuator is matched with the lifting bracket to realize the raising and lowering of the panel. According to the length of the bracket, it is divided into four specifications: 61/90/110/150CM, the thickness of the bracket is 5MM, and the opening and closing angle is 0-45°. This bed box electric lift is controlled by 24V or 12V power supply, and the load capacity is 80-150kg.
When using two tatami electric lifts at the same time, please pay attention to test first, avoid one to rise and the other to not move, which will damage the board

TECHNICAL PARAMETERS

Model	SRLB-60	SRLB-90	SRLB-110	SRLB-150
Load Capacity	50KG	80KG	120KG	150KG
Speed	1.43°/s	0.88°/s	0.88°/s	0.9°/s
Length (MM)	610	900	1100	1500
Open Angle	40°	44°	44°	45°
Installation Angle	0°	-3.1°	-2°	-1°
Voltage	DC12~19V or DC24~32V
Operating Temperature	-10°C~+60°C
IP Grade	IP43
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 1 Hour Continue Working
Color	White or Balck
